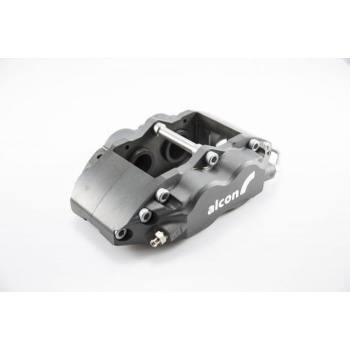

Alcon Rally 4 KOLVIGA PIDURISADUL Ø38.1/41.3 Pistons

Installation options

LT  - Left Tailling = left, in the direction of travel behind the disc
RT - Right Tailling = right, in the direction of travel behind the disc
LL - Left Leading = left, in the direction of travel in front of the disc
RL - Right Leading = right, in the direction of travel in front of the disc

Specifications

• Disc diameter range: ø250 - 304mm.

• Disc thickness range: 25.4 - 28mm.

• Fluid inlet 3/8-24 UNF (-3) male.

• Dry weight 1.9kg excluding pads.

• Alcon pad reference: 4463/39 area 80cm² per caliper, 4463/42 area 92cm² per caliper, 16mm thick, 113.5mm long
